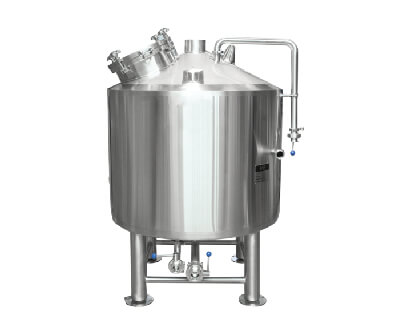

Techwin limited Boil Kettle is one of the most critical components in the beer brewing process. Designed to bring wort to a controlled, vigorous boil,
it’s responsible for sterilization, hop extraction, and the development of essential flavor compounds. Our boil kettles are engineered for precision, consistency, and durability making them ideal for both craft breweries and high-volume operations.
Product Description
Our Boil Kettle is a premium-grade stainless steel vessel built for the wort boiling stage in brewing. It features advanced heating options, precise temperature control, and efficient steam management systems to ensure clean, consistent boils with minimal evaporation loss and energy usage. Available in standalone and brewhouse-integrated formats, this kettle is designed to fit your brewery’s unique process and scale.
Key Features
- High-Efficiency Heating
o Options for steam jacket, direct fire, or electric heating elements
o Rapid heating for strong, consistent rolling boils - Durable Construction
o Made from SS304 or SS316L stainless steel
o Polished interior with sanitary welds for easy cleaning - Evaporation Control
o Equipped with a steam stack and optional condensation hood
o Optimized evaporation rates (typically 4–8%/hr) - Hops Addition Ports
o Ports or manways for timed hop additions
o Optional hop dosing system integration - Temperature Monitoring
o Integrated thermowells and sensors for real-time feedback
o Optional PLC-based control system with recipe presets - Whirlpool Functionality (Optional)
o Combined kettle/whirlpool design for efficient space use
o Internal tangential inlet for hot break sediment separation
Benefits
• Ensures complete wort sterilization
• Enhances flavor, bitterness, and clarity
• Reduces DMS and volatile compounds
• Streamlines hop utilization
• Compatible with CIP cleaning systems
• Integrates seamlessly with mash tuns, whirlpools, and fermenters
Applications
• Craft Breweries
• Microbreweries
• Pilot Brewing Plants
• Medium to Large Commercial Breweries
Technical Specifications
Specification Detail
Capacity Range 200L – 5,000L
Material SS304 / SS316L
Heating Methods Available Steam Jacket / Electric / Direct Fire
Heating Jacket Pressure Up to 2 bar (for steam-heated models)
Evaporation Rate 4% – 8% per hour
Insulation Polyurethane or Rockwool
Control System Manual, Semi-auto, or Full PLC
Ports & Fittings Tri-clamp or threaded, customizable
Cleaning System CIP Spray Ball or Manual
Safety Features Pressure relief valve, temperature alarm
Customization Options
Whirlpool integration
• Hop dosing port
• CIP system and control automation
• Double-lid design or hinged top
• Sight glass and lighting for internal inspection
• SCADA & remote monitoring integration
Why Choose Our Boil Kettles?
• Designed by brewers, for brewers
• Built to deliver reliable results batch after batch
• Fully customizable to fit your space and process
• Energy-efficient and long-lasting construction
• Complies with food safety and brewery standards worldwide
Ready to Brew Better?
Let us help you choose the right boil kettle for your brewery.
Contact Techwin limited today at +254715122543 for sizing recommendations, layout integration, or a custom quote tailored to your brewing operation.
