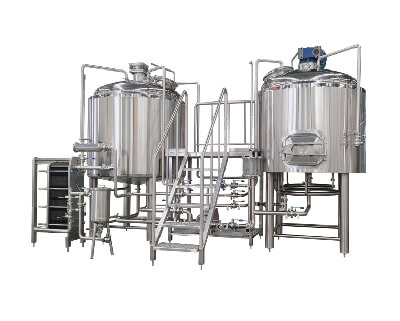

At the heart of every great brew is a perfect mash. Mashing tanks, also known as Mash Tuns, are specially designed vessels used during the mashing phase of
brewing. They provide the ideal environment for enzymatic activity, allowing malted grains and water to mix and convert complex starches into sugars. Techwin limited tanks are constructed from food-grade stainless steel, with automated control systems and custom features to meet the unique demands of modern breweries.
Product Models
1. Standard Mash Tun (Single Vessel)
o For small to mid-sized craft breweries
o Manual or semi-automatic control
o Available in 200L to 2,000L capacities
2. Combined Mash/Lauter Tun
o Dual-function design for space-saving
o Integrated false bottom and raking system
o Ideal for high-efficiency extraction
3. Automated Mash Tun System
o PLC-controlled temperature steps and mixing
o Recipe programming and repeatability
o CIP-ready with steam or electric heating
Key Features
• High Thermal Efficiency: Double-wall construction with steam jackets or electric heating for uniform temperature distribution.
• Automated Controls: PLC with touchscreen HMI for precise temperature ramping and rest holds.
• Built-In Agitator: Motorized mixing system ensures consistent mashing and prevents scorching.
• Integrated Thermowells: Real-time monitoring of temperature at multiple mash depths.
• False Bottom (Lauter Option): For efficient wort separation in combined units.
• Sanitary Design: CIP-compatible design with smooth welds and hygienic valves.
Applications
- Craft Breweries
- Microbreweries
- Pilot Brewing Systems
- Large Commercial Breweries
- Brewing Training Institutes
Technical Specifications
Specification Details
Capacity Range 200L – 5,000L
Heating Options Steam, Electric, Direct Fire
Material SS304 / SS316L
Jacket Type Dimple Jacket / Full Steam Jacket
Insulation Polyurethane foam or Rockwool
Mixing System Top- or side-mounted agitator
Control System Manual / Semi-auto / Fully automated
Cleaning CIP Spray Ball / Manual Access Port
Operating Temperature 40°C to 78°C
Safety Features Pressure relief valves, temp alarms
Why Choose Our Mashing Tanks?
• Engineered for optimal sugar extraction and enzyme activity
• Built with durable, sanitary-grade materials
• Supports traditional and step-mashing techniques
• Easy to operate, clean, and maintain
• Customizable for batch size, process flow, and heating source
Available Add-ons
• Lautering rakes and sparging arms
• Grain-in auger or milling integration
• Wort pump and transfer system
• Sight glass and interior lighting
• Data logging and SCADA integration
Request a Quote or Brewery Consultation
Ready to enhance your mash process?
Contact Techwin limited at 0719 034 950 for a personalized system quote, technical drawings, or a free consultation with our brewery equipment specialists.
